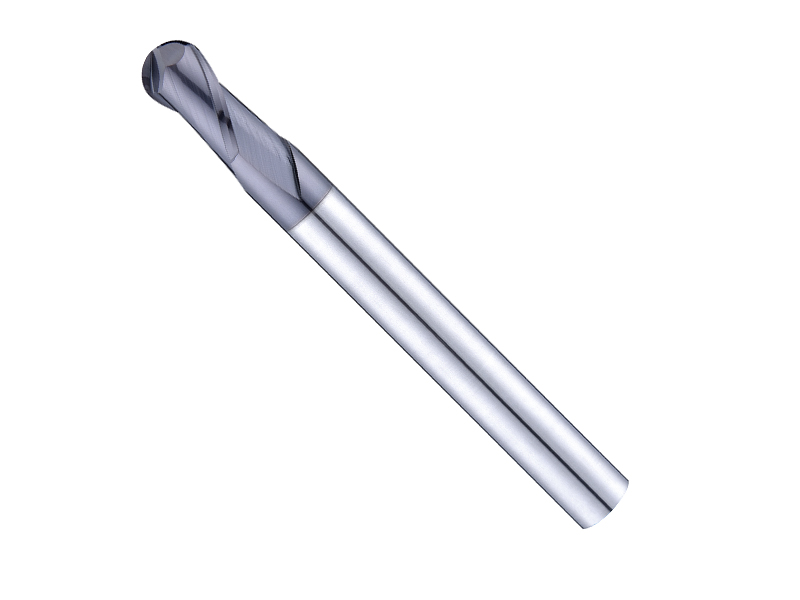

2 Flutes Ball Nose End Mills-Long Shank

WORK MATERIAL:Cast Irons,Alloy Steels,Tool Steels, Hardened Steels,Prehardened Steels

Mode Diameter Radius Flute Length Flutes Shank Diameter Full Length Helix Angle
BD2CAC04008 4 2 8 2 4 75 30°
BD2CBD04008 4 2 8 2 6 100 30°
BD2CBC06012 6 3 12 2 6 75 30°
BD2CBD06012 6 3 12 2 6 100 30°
BD2CCC08016 8 4 16 2 8 75 30°
BD2CCD08016 8 4 16 2 8 100 30°
BD2CDD10020 10 5 20 2 10 100 30°
BD2CDK10020 10 5 20 2 10 150 30°
BD2CED12024 12 6 24 2 12 100 30°
BD2CEK12024 12 6 24 2 12 150 30°
BD2CGK16030 16 8 30 2 16 150 30°
BD2CHK20030 20 10 30 2 20 150 30°



Introducing our Ball Nose End Mills with Long Shank, specially designed for precision machining of various work materials including cast irons, alloy steels, tool steels, hardened steels, and prehardened steels. These cutting-edge end mills are engineered with an extended shank, providing added reach and accessibility in machining operations.

The Ball Nose End Mills with Long Shank feature a rounded cutting edge and a long flute length, enabling smooth and accurate cutting performance. The extended shank design allows for deep cavity milling, contouring, and profiling, making them ideal for applications that require extended reach and clearance.

Crafted with high-quality materials and advanced coating technologies, our Ball Nose End Mills with Long Shank deliver exceptional wear resistance, extended tool life, and superior performance. The precise flute geometry and optimized chip evacuation ensure efficient material removal and prevent chip clogging, resulting in improved productivity and surface finish.

Whether you're working on intricate molds, complex parts, or general machining tasks, our Ball Nose End Mills with Long Shank provide the versatility and reliability you need. Experience the precision and efficiency of these tools, designed to meet the demands of professional machinists and deliver excellent results in a wide range of machining applications.
