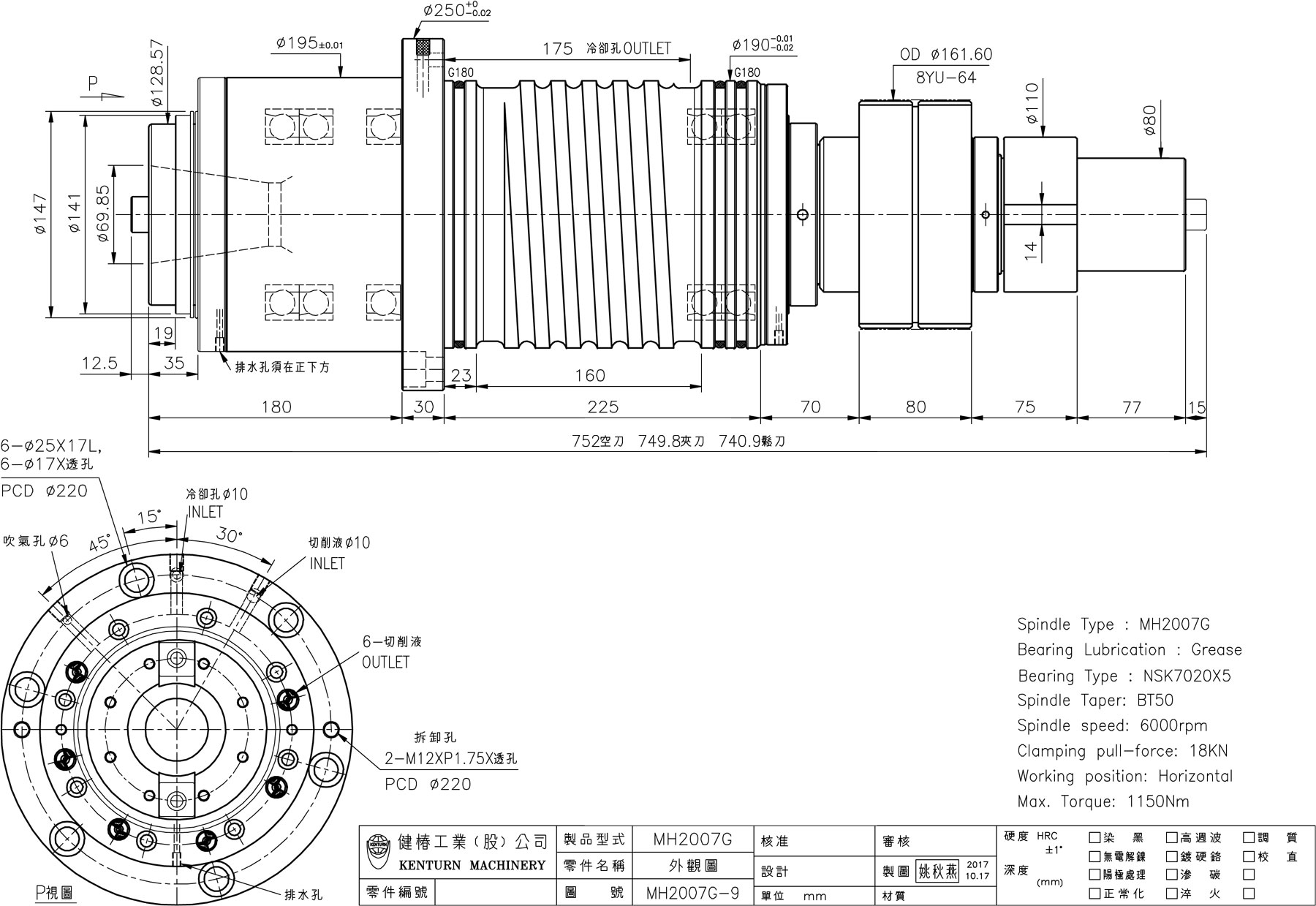

MH2007G

Spindle Taper:BT50
Outer Diameter:190 mm
Max. Speed:6,000 rpm
Bearing size:Ø100
Bearing Lubrication:Grease
Clamping pull-force:18 KN
Max. Torque:1150 Nm

Introducing our powerful and versatile Belt Drive Spindles, designed to meet the demanding needs of modern machining operations. With a BT50 Spindle Taper and an outer diameter of 190 mm, these spindles provide a robust and reliable solution for a wide range of machining applications.

Operating at a maximum speed of 6,000 rpm, our Belt Drive Spindles deliver exceptional performance and precision. Whether you require high-speed material removal or intricate surface finishes, our spindles provide the speed and accuracy needed to achieve outstanding results.

Equipped with Ø100 bearings and a reliable grease lubrication system, our spindles ensure smooth and efficient operation. The high-quality bearings are designed to handle heavy loads and maintain precise alignment, minimizing vibrations and ensuring superior machining accuracy.

With a clamping pull-force of 18 KN, our spindles provide a secure grip on your cutting tools, minimizing tool displacement and allowing for precise and consistent machining. Additionally, our spindles offer a maximum torque of 1150 Nm, providing ample power for heavy-duty cutting and machining tasks.

Whether you're in the automotive, aerospace, or general manufacturing industry, our Belt Drive Spindles are engineered to deliver exceptional performance and reliability. Experience enhanced productivity and precision with our advanced Belt Drive Spindles, designed to meet the demands of your most challenging machining requirements.
