4 Flutes Corner Radius End Mills-Long Shank
4 Flutes Corner Radius End Mills-Long Shank
WORK MATERIAL：Cast Irons,Alloy Steels,Tool Steels, Hardened Steels,Prehardened Steels
| Mode | Diameter | Radius | Flute Length | Flutes | Shank Diameter | Full Length | Helix Angle |
|---|---|---|---|---|---|---|---|
| CA4CAC05004008 | 4 | 0.5 | 8 | 4 | 4 | 75 | 35° |
| CA4CAC10004008 | 4 | 1.0 | 8 | 4 | 4 | 75 | 35° |
| CA4CAD05004008 | 4 | 0.5 | 8 | 4 | 4 | 100 | 35° |
| CA4CAD10004008 | 4 | 1.0 | 8 | 4 | 4 | 100 | 35° |
| CA4CBC05006012 | 6 | 0.5 | 12 | 4 | 6 | 75 | 35° |
| CA4CBC10006012 | 6 | 1.0 | 12 | 4 | 6 | 75 | 35° |
| CA4CBD05006012 | 6 | 0.5 | 12 | 4 | 6 | 100 | 35° |
| CA4CBD10006012 | 6 | 1.0 | 12 | 4 | 6 | 100 | 35° |
| CA4CCC05008016 | 8 | 0.5 | 16 | 4 | 8 | 75 | 35° |
| CA4CCC10008016 | 8 | 1.0 | 16 | 4 | 8 | 75 | 35° |
| CA4CCD05008016 | 8 | 0.5 | 16 | 4 | 8 | 100 | 35° |
| CA4CCD10008016 | 8 | 1.0 | 16 | 4 | 8 | 100 | 35° |
| CA4CDD05010020 | 10 | 0.5 | 20 | 4 | 10 | 100 | 35° |
| CA4CDD10010020 | 10 | 1.0 | 20 | 4 | 10 | 100 | 35° |
| CA4CED05012024 | 12 | 0.5 | 24 | 4 | 12 | 100 | 35° |
| CA4CED10012024 | 12 | 1.0 | 24 | 4 | 12 | 100 | 35° |

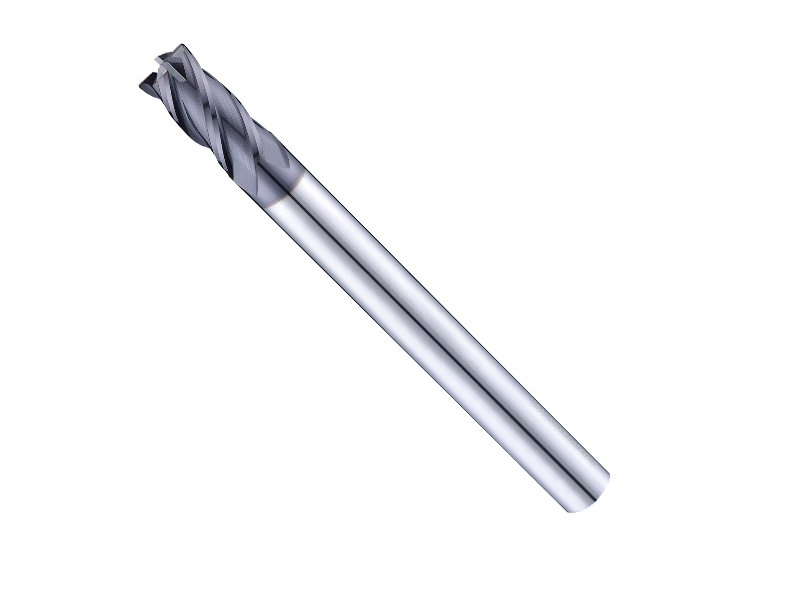

Introducing our Corner Radius End Mills - Long Shank, the perfect solution for precision machining of various work materials such as cast irons, alloy steels, tool steels, hardened steels, and prehardened steels. These cutting-edge tools are designed with an extended shank length, providing exceptional reach and accessibility for deep cavity machining and complex contouring.

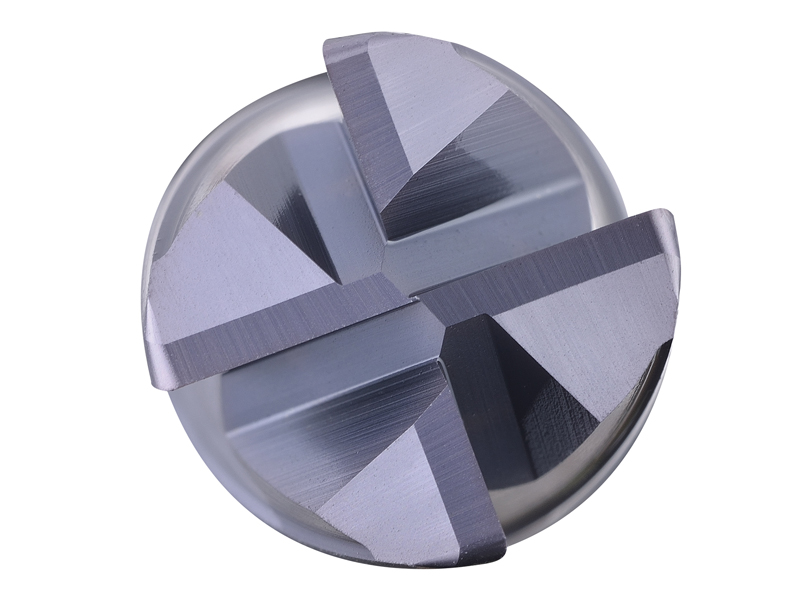

The Corner Radius End Mills - Long Shank feature a rounded corner radius, combining the benefits of both square end mills and ball nose end mills. This unique design allows for smooth and precise cutting, minimizing the risk of chipping and ensuring superior surface finish. The extended shank length enables machining in hard-to-reach areas, making it ideal for applications that require deep cavities or extended reach.
Crafted from high-quality materials and utilizing advanced coating technologies, our Corner Radius End Mills - Long Shank offer exceptional performance and durability. The optimized flute geometry and chip evacuation design ensure efficient chip removal, reducing heat buildup and extending tool life. These end mills are specifically engineered to withstand heavy-duty operations and deliver outstanding cutting performance and dimensional accuracy.
Experience the versatility and reliability of our Corner Radius End Mills - Long Shank, designed to meet the demanding requirements of professional machinists. Whether you are working with intricate parts or tackling deep cavity machining, these tools will exceed your expectations and deliver exceptional results. Enhance your machining capabilities with our innovative tools and achieve unparalleled productivity and precision.
