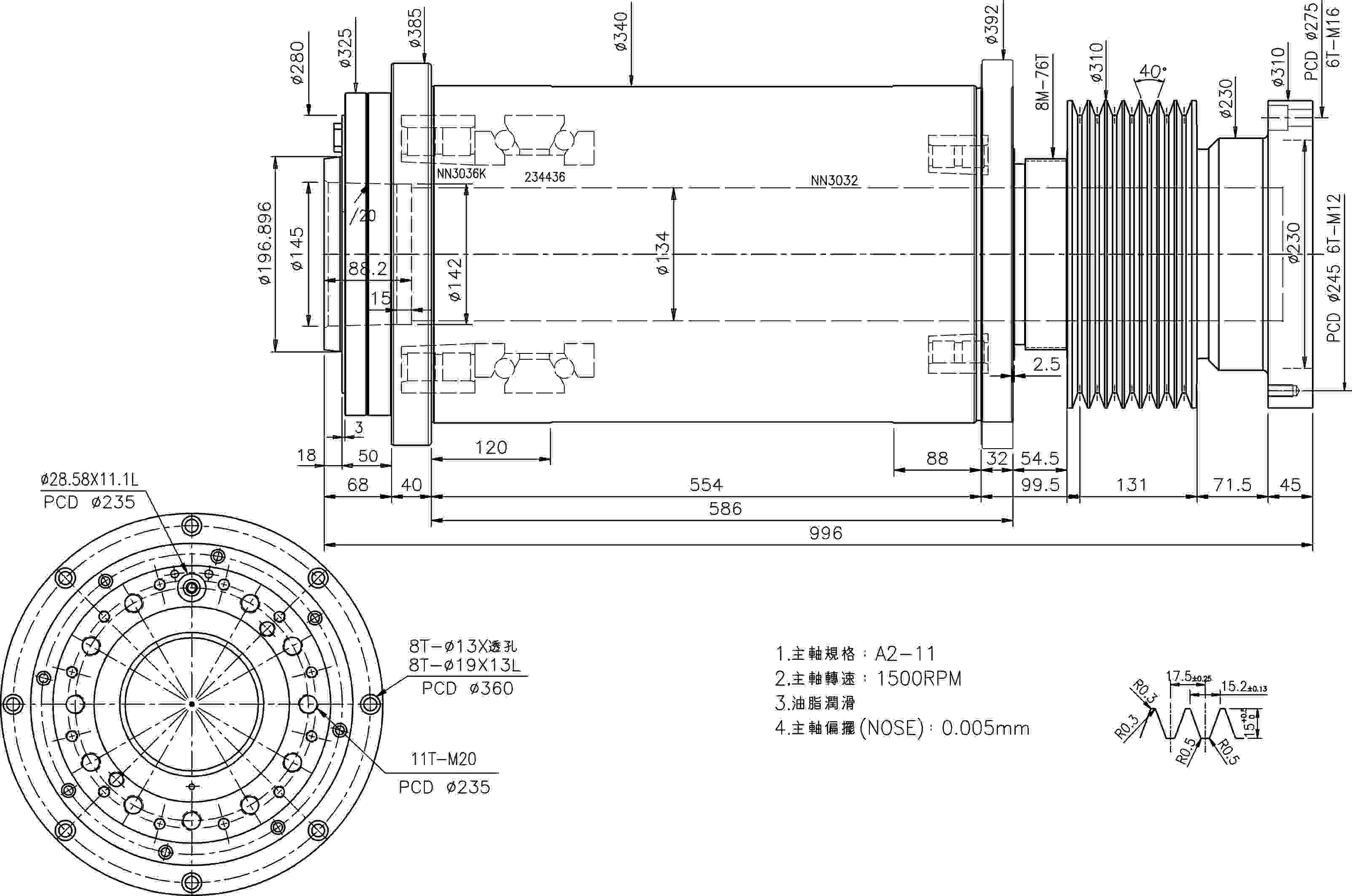

Spindle Nose:A2-11
Outer Diameter:340 mm
Spindle Bore Dia.:134 mm
Max. Speed:1,500 rpm
Bearing Size:Ø160
Bearing Lubrication:Grease


Introducing our cutting-edge Belt Drive-Horizontal spindle, engineered to revolutionize your horizontal machining operations. With an A2-11 spindle nose, an outer diameter of 340 mm, and a spindle bore diameter of 134 mm, this spindle delivers exceptional performance and versatility.

Operating at a maximum speed of 1,500 rpm, our Belt Drive-Horizontal spindle provides the perfect balance between speed and precision. The Ø160 bearing size ensures excellent stability and accuracy, ensuring consistent and superior machining results.

Equipped with a reliable grease lubrication system, our spindle ensures smooth and dependable operation. The advanced lubrication mechanism minimizes friction and wear, resulting in an extended spindle lifespan and consistent performance even in demanding machining applications.

Experience the outstanding capabilities of our Belt Drive-Horizontal spindle. With its precise design, impressive specifications, and dependable lubrication system, this spindle empowers manufacturers to achieve exceptional machining results across a wide range of horizontal machining tasks. Trust in our advanced technology and expertise to enhance your machining operations with unparalleled precision, speed, and efficiency.
